Home Products Cage Spring Terminal Block PTB840B-20-M*-S*

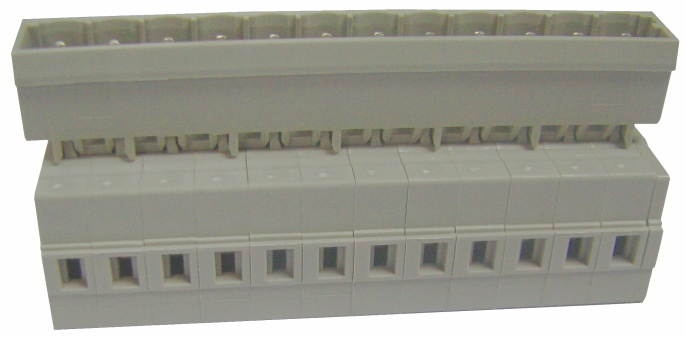

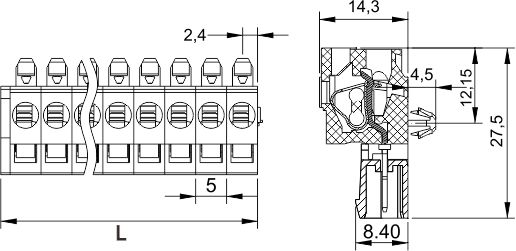

PTB840B-20-M*-S*

300V/15A/5.00mm

Rated voltage：300 V Rated vurrent：15 A

Pitch：5.00 mm

Poles

2-24

Technical data

Authentication

Business data

Download

Attachments

Related products

PTB800B-01-M*-S*

Rated voltage：300 V Rated vurrent：11 A

Wire Range ：12-28 AWG

Pitch：5.00 mm

PTB800B-02-M*-S*

Rated voltage：300 V Rated vurrent：11 A

Wire Range ：12-28 AWG

Pitch：5.00 mm

PTB800B-03-M*-S*

Rated voltage：300 V Rated vurrent：11 A

Wire Range ：12-28 AWG

Pitch：5.00 mm

PTB800B-08-M*-S*

Rated voltage：300 V Rated vurrent：11 A

Wire Range ：12-28 AWG

Pitch：5.00 mm

PTB840B-11-M*-S*

Rated voltage：300 V Rated vurrent：15 A

Wire Range ：12-28 AWG

Pitch：5.00 mm

PTB750B-02

Rated voltage：300 V Rated vurrent：15 A

Pitch：5.00 mm

PTB770B-01

Rated voltage：300 V Rated vurrent：15 A

Pitch：5.00 mm

PTB840B-09-M*-S*

Rated voltage：300 V Rated vurrent：15 A

Pitch：7.50 mm

PTB840B-10-M*-S*

Rated voltage：300 V Rated vurrent：15 A

Pitch：5.00 mm

UL Technical Data

Rated Voltage (V)	300
Rated Current (A)	15
Wire Range (AWG)	12-28
Rated Surge Voltage （KV）	-
Insulation Material	PA
Inflammability Class	UL94,V-0
Terminal Material	Brass
Terminal Plating	Tin Plated
Operating	-40℃ - +105℃
