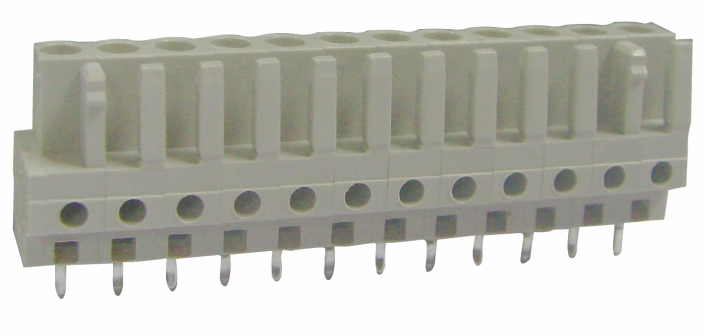

PTB770B-01
300V/15A/5.00mm

Rated voltage:300 V      Rated vurrent:15 A

Pitch:5.00 mm

Poles
2-24
Technical data
Authentication
Business data
Download
Attachments

UL Technical Data

Rated Voltage (V) 300
Rated Current  (A) 15
Wire Range   (AWG) -
Rated Surge Voltage  (KV) -
Insulation Material PA
Inflammability Class UL94,V-0
Terminal Material Brass
Terminal Plating Tin Plated
Operating -40℃ - +105℃
