Rated voltage：300 V Rated vurrent：15 A
Wire Range ：12-28 AWG

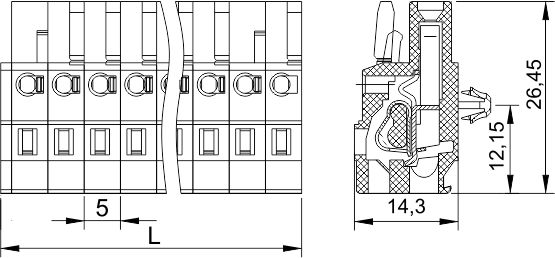

Pitch：5.00 mm
| Rated Voltage (V) | 300 |
| Rated Current (A) | 15 |
| Wire Range (AWG) | 12-28 |
| Rated Surge Voltage （KV） | 4 |
| Insulation Material | PA |
| Inflammability Class | UL94,V-0 |
| Terminal Material | Brass |
| Terminal Plating | Tin Plated |
| Operating | -40℃ - +105℃ |
