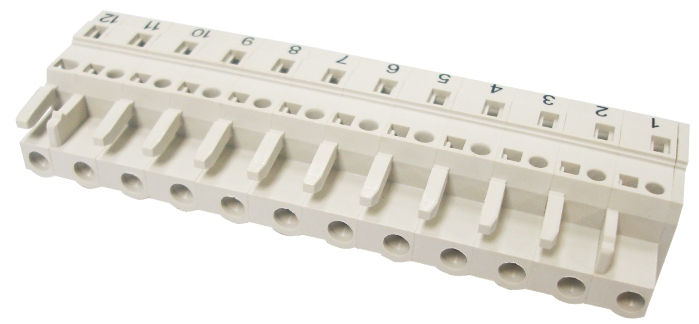

PTB800B-01-M*-S*
300V/11A/5.00mm

Rated voltage:300 V      Rated vurrent:11 A

Wire Range :12-28 AWG

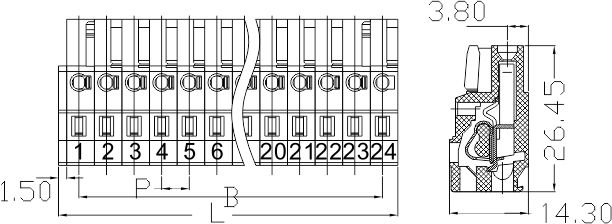

Pitch:5.00 mm

Poles
2-24
Technical data
Authentication
Business data
Download
Attachments

UL Technical Data

Rated Voltage (V) 300
Rated Current  (A) 11
Wire Range   (AWG) 12-28
Rated Surge Voltage  (KV) 4
Insulation Material   PA
Inflammability Class UL94,V-0
Terminal Material  Brass
Terminal Plating  Tin Plated
Operating   -40℃ - +105℃

CSA Technical Data

Rated Voltage (V) 300
Rated Current  (A) 15
Wire Range   (AWG) 12-28
Rated Surge Voltage  (KV) 4
Insulation Material   PA
Inflammability Class UL94,V-0
Terminal Material  Brass
Terminal Plating  Tin Plated
Operating   -40℃ - +105℃

VDE Technical Data

Rated Voltage (V) 300
Rated Current  (A) 11
Wire Range   (AWG)(mm2) 0.2-2.5
Rated Surge Voltage (KV) 4
Insulation Material   PA
Inflammability Class UL94,V-0
Terminal Material  Brass
Terminal Plating  Tin Plated
Operating   -40℃ - +105℃
