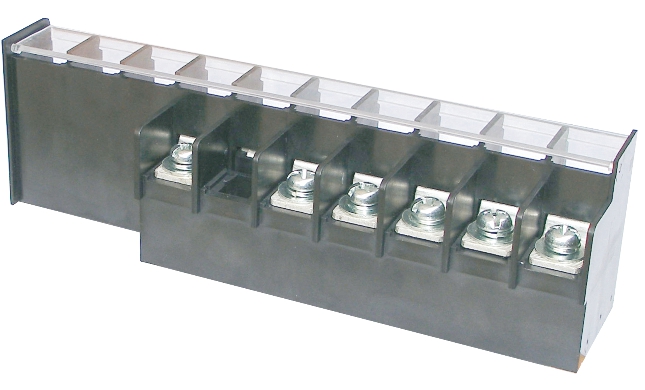

BTB950-02
600V/60A/20mm

Rated voltage:600 V      Rated vurrent:60 A

Wire Range :8-14 AWG

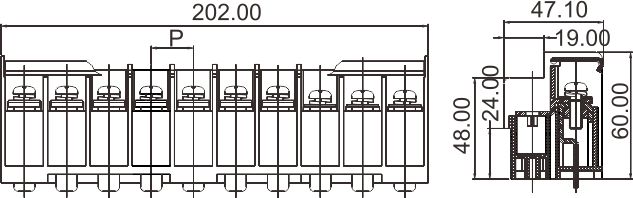

Pitch:20.00 mm



Poles
10
Technical data
Authentication
Business data
Download
Attachments

UL Technical Data

Rated Voltage (V) 600
Overvoltage Category B
Rated Current(A) 60
Wire Range (AWG) 8-14

IEC Technical Data

Material Grop
Overvoltage Category (Ⅲ/3)(KV)
Overvoltage Category(Ⅲ/3)(KV)
Overvoltage Category(Ⅱ/2)(KV)
Contamination Class 3
Contamination Class 2
Contamination Class 2
Rated Voltage (V) 1000
Rated Voltage (V) 1000
Rated Voltage (V) 1000
Rated Surge Voltage (KV) 6
Rated Surge Voltage (KV) 6
Rated Surge Voltage (KV) 6
Rated Connectiong Capacity (mm2) 10
Rated Current(A) 60

Material

Insulation Material PBT
Inflammability Class UL94,V-0

Other Data

Stripping Length (mm) 12
Screw (M) 6
Torque  (lbf.in) 42
Hole Diameter ∅
Pin size 2.2*10.00
