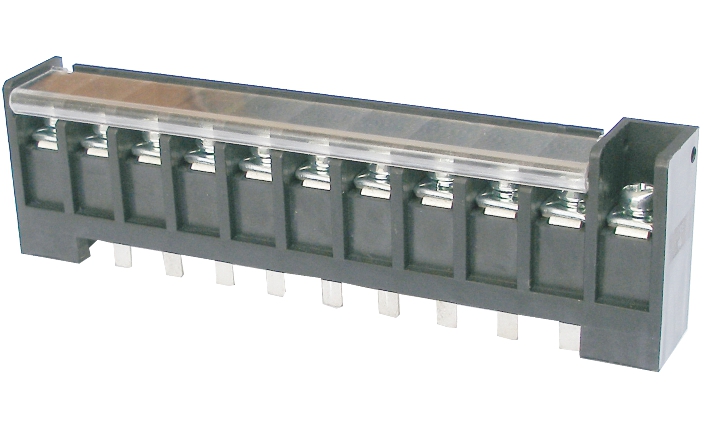

BTB950-01
600V/40A/14.5mm

Rated voltage:600 V      Rated vurrent:40 A

Wire Range :8-22 AWG

Pitch:14.50 mm



Poles
11
Technical data
Authentication
Business data
Download
Attachments

UL Technical Data

Rated Voltage (V) 600
Overvoltage Category B
Rated Current(A) 40
Wire Range (AWG) 8-22

IEC Technical Data

Material Grop
Overvoltage Category (Ⅲ/3)(KV)
Overvoltage Category(Ⅲ/3)(KV)
Overvoltage Category(Ⅱ/2)(KV)
Contamination Class 3
Contamination Class 2
Contamination Class 2
Rated Voltage (V) 1000
Rated Voltage (V) 1000
Rated Voltage (V) 1000
Rated Surge Voltage (KV) 6
Rated Surge Voltage (KV) 6
Rated Surge Voltage (KV) 6
Rated Connectiong Capacity (mm2) 2.5
Rated Current(A) 40

Material

Insulation Material PBT
Inflammability Class UL94,V-0

Other Data


Stripping Length (mm) 10
Screw (M) 5
Torque  (lbf.in) 22
Hole Diameter ∅
Pin size 1.2*5.0
