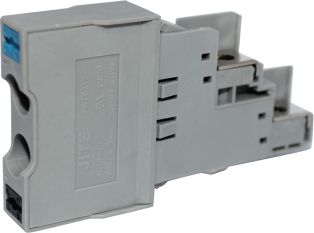

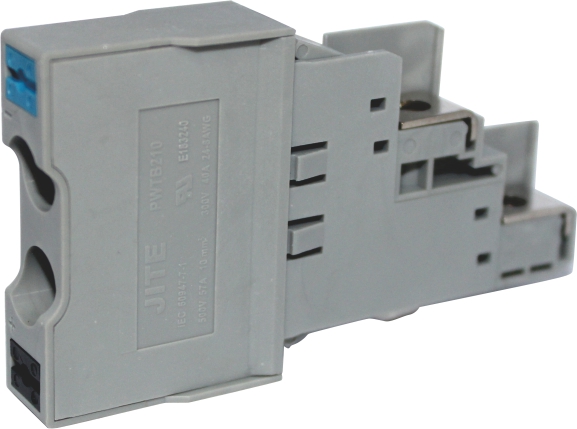

PWTB210-00-M1
300V/40A/13.75mm

Rated voltage:300 V      Rated vurrent:40 A

Wire Range :8-24 AWG

Pitch:13.75 mm

Poles
1P
Technical data
Authentication
Business data
Download
Attachments

UL Technical Data

Rated Voltage (V) 300
Rated Current (A) 40
Wire Range(AWG) 8-24
Rated Surge Voltage  (KV) -
Insulation Material PA
Inflammability Class  V-0
Terminal Material  Brass
Terminal Plating   Nickel plated
Screw (M)
Torque(lbf.in)
Operating  -40℃ - +105℃

IEC Technical Data

Rated Voltage (V) 500
Rated Current (A) 57
Wire Range(AWG)(mm2) 10
Rated Surge Voltage  (KV) -
Insulation Material PA
Inflammability Class  V-0
Terminal Material  Brass
Terminal Plating   Nickel plated
Screw (M)
Torque(lbf.in)
Operating  -40℃ - +105℃

Name
Document
Download
CAD图像数据
2EDGKNHM-5.08-06P-13-00A(H).stp
CAD图像数据
2EDGKNHM-5.08-06P-13-00A(H).stp
Name
Document
Download
CAD图像数据
2EDGKNHM-5.08-06P-13-00A(H).stp
CAD图像数据
2EDGKNHM-5.08-06P-13-00A(H).stp
Multi-digit picture
1P
