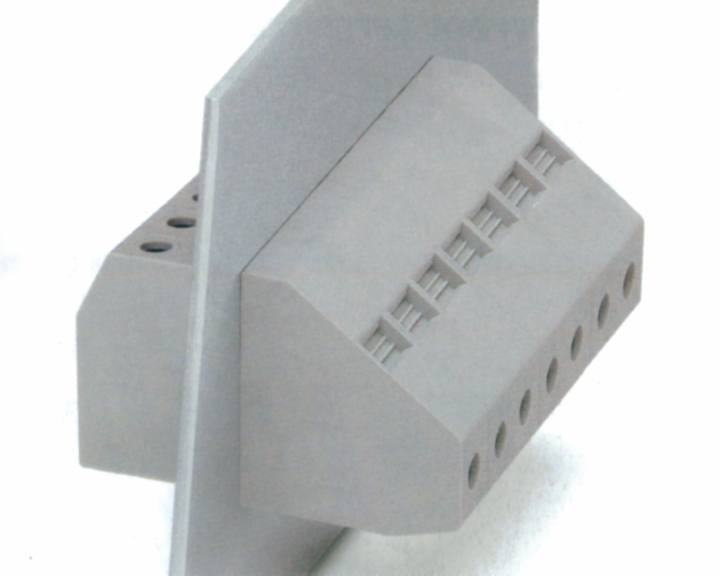

PWTB116-00
600V/85A/12.10mm

Rated voltage:600 V      Rated vurrent:85 A

Wire Range :4-20 AWG

Pitch:12.10 mm

Poles
1P
Technical data
Authentication
Business data
Download
Attachments

UL Technical Data

Rated Voltage (V) 600
Rated Current (A) 85
Wire Range(AWG) 4-20
Rated Surge Voltage  (KV) 6
Insulation Material PA
Inflammability Class  V-0
Terminal Material  Brass
Terminal Plating   Tin Plated
Screw (M) 5
Torque(lbf.in) 4-4.5
Operating  -40℃ - +105℃

Name
Document
Download
Name
Document
Download
Multi-digit picture
1P
