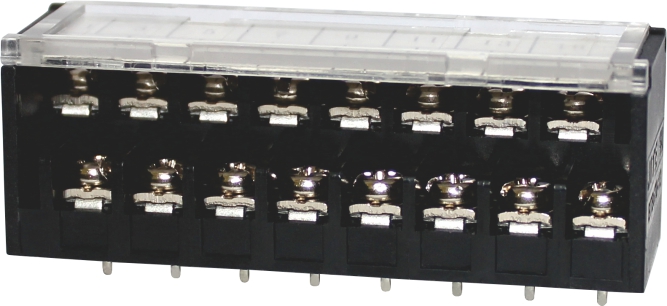

BTB670-13
300V/10A/7.62mm

Rated voltage:300 V      Rated vurrent:10 A

Wire Range :14-22 AWG

Pitch:7.62 mm



Poles
2-21
Technical data
Authentication
Business data
Download
Attachments

UL Technical Data

Rated Voltage (V) 300
Overvoltage Category B
Rated Current(A) 10
Wire Range (AWG) 14-22

IEC Technical Data

Material Grop
Overvoltage Category (Ⅲ/3)(KV)
Overvoltage Category(Ⅲ/3)(KV)
Overvoltage Category(Ⅱ/2)(KV)
Contamination Class 3
Contamination Class 2
Contamination Class 2
Rated Voltage (V) 320
Rated Voltage (V) 320
Rated Voltage (V) 630
Rated Surge Voltage (KV) 2.5
Rated Surge Voltage (KV) 2.5
Rated Surge Voltage (KV) 2.5
Rated Connectiong Capacity (mm2) 4
Rated Current(A) 10

Material

Insulation Material PBT
Inflammability Class UL94,V-0

Other Data

Stripping Length (mm) 5
Screw (M) 3
Torque  (lbf.in) 7
Hole Diameter ∅ 1.5
Pin size 0.8*1.0




Name
Document
Download
Name
Document
Download
Multi-digit picture
2-21
