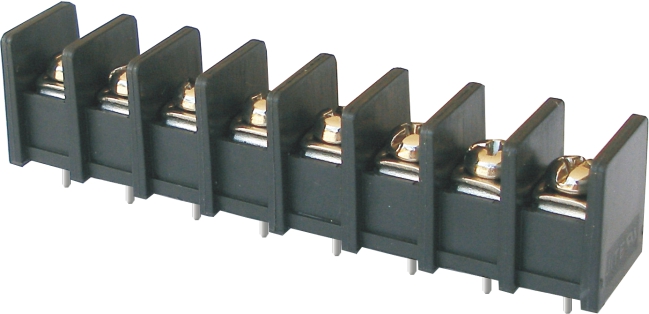

BTB653-06
300V/20A/10.00mm

Rated voltage:300 V      Rated vurrent:20 A


Wire Range :12-26 AWG

Pitch:10.00 mm


Poles
2-30
Technical data
Authentication
Business data
Download
Attachments

UL Technical Data

Rated Voltage (V) 300
Overvoltage Category B
Rated Current(A) 20
Wire Range (AWG) 12-22

IEC Technical Data

Material Grop
Overvoltage Category (Ⅲ/3)(KV)
Overvoltage Category(Ⅲ/3)(KV)
Overvoltage Category(Ⅱ/2)(KV)
Contamination Class  3
Contamination Class  2
Contamination Class  2
Rated Voltage (V) 160
Rated Voltage (V) 160
Rated Voltage (V) 320
Rated Surge Voltage (KV) 4
Rated Surge Voltage (KV) 4
Rated Surge Voltage (KV) 4
Rated Connectiong Capacity (mm2) 4
Rated Current(A) 20

Material

Insulation Material   PBT
Inflammability Class  UL94,V-0

Other Data

Stripping Length (mm) 5
Screw (M) 4
Torque  (lbf.in) 8
Hole Diameter ∅ 1.9
Pin size 0.8*1.6




Name
Document
Download
Name
Document
Download
Multi-digit picture
2-30
