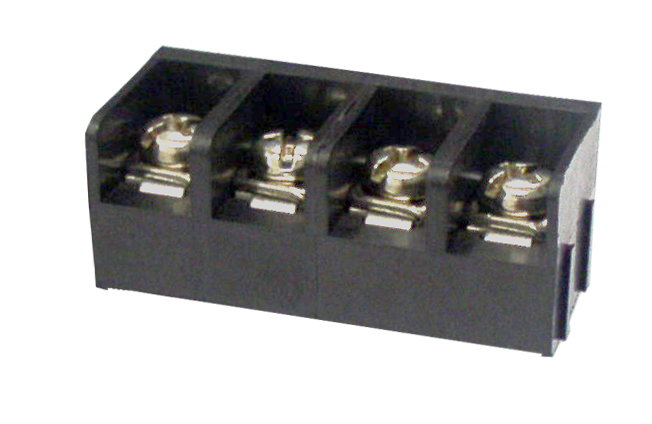

BTB653-02
300V/15A/10.00mm

Rated voltage:300 V      Rated vurrent:15 A


Wire Range :12-22 AWG

Pitch:10.00 mm


Poles
2,3
Technical data
Authentication
Business data
Download
Attachments

UL Technical Data

Rated Voltage (V) 300
Overvoltage Category B
Rated Current(A) 15
Wire Range (AWG) 12-22

IEC Technical Data

Material Grop
Overvoltage Category (Ⅲ/3)(KV)
Overvoltage Category(Ⅲ/3)(KV)
Overvoltage Category(Ⅱ/2)(KV)
Contamination Class  3
Contamination Class  2
Contamination Class  2
Rated Voltage (V) 160
Rated Voltage (V) 160
Rated Voltage (V) 320
Rated Surge Voltage (KV) 4
Rated Surge Voltage (KV) 4
Rated Surge Voltage (KV) 4
Rated Connectiong Capacity (mm2) 2.5
Rated Current(A) 15

Material

Insulation Material   PBT
Inflammability Class  UL94,V-0

Other Data

Stripping Length (mm) 5
Screw (M) 4
Torque  (lbf.in) 7
Hole Diameter ∅ 2.2
Pin size 0.8*1.8
