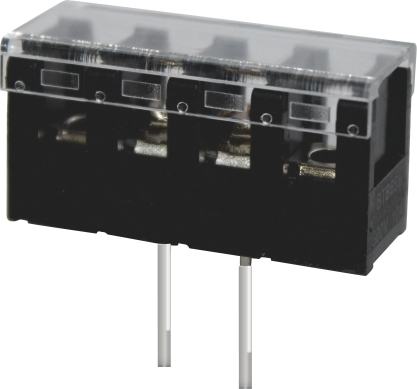

BTB651-02-M1
300V/10A/7.62mm

Rated voltage:300 V      Rated vurrent:10 A

Wire Range :14-22  AWG

Pitch:7.62  mm



Poles
2-32
Technical data
Authentication
Business data
Download
Attachments

UL Technical Data

Rated Voltage (V) 300
Overvoltage Category B
Rated Current(A) 10
Wire Range (AWG) 14-22

IEC Technical Data

Material Grop
Overvoltage Category (Ⅲ/3)(KV)
Overvoltage Category(Ⅲ/3)(KV)
Overvoltage Category(Ⅱ/2)(KV)
Contamination Class 3
Contamination Class 2
Contamination Class 2
Rated Voltage (V) 600
Rated Voltage (V) 600
Rated Voltage (V) 600
Rated Surge Voltage (KV) 4
Rated Surge Voltage (KV) 4
Rated Surge Voltage (KV) 4
Rated Connectiong Capacity (mm2) 4
Rated Current(A) 10

Material

Insulation Material PA
Inflammability Class UL94,V-0

Other Data


Stripping Length (mm) 7.9
Screw (M) 3
Torque  (lbf.in) 7
Hole Diameter ∅ 1.5
Pin size
