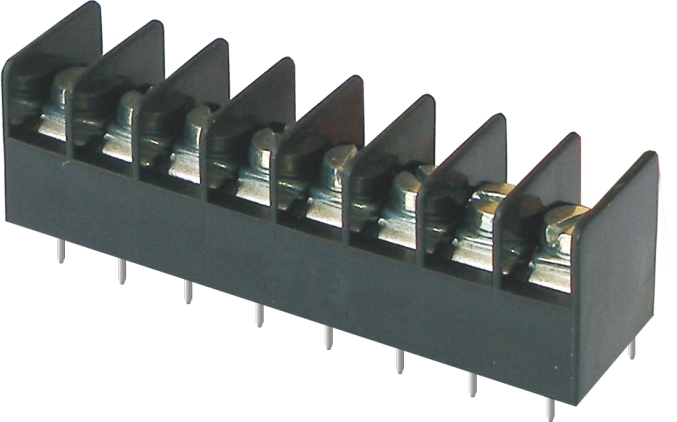

BTB450-01
300V/10A/6.35mm

Rated voltage:300 V      Rated vurrent:10 A

Wire Range :18-22  AWG

Pitch:6.35  mm




Poles
2-24
Technical data
Authentication
Business data
Download
Attachments

UL Technical Data

Rated Voltage (V) 300
Overvoltage Category B
Rated Current(A) 10
Wire Range (AWG) 18-22

IEC Technical Data

Material Grop
Overvoltage Category (Ⅲ/3)(KV)
Overvoltage Category(Ⅲ/3)(KV)
Overvoltage Category(Ⅱ/2)(KV)
Contamination Class 3
Contamination Class 2
Contamination Class 2
Rated Voltage (V) 320
Rated Voltage (V) 320
Rated Voltage (V) 320
Rated Surge Voltage (KV) 4
Rated Surge Voltage (KV) 4
Rated Surge Voltage (KV) 4
Rated Connectiong Capacity (mm2) 0.75
Rated Current(A) 10

Material

Insulation Material PA
Inflammability Class UL94,V-0

Other Data

Stripping Length (mm) 7
Screw (M) 3
Torque  (lbf.in) 4.5
Hole Diameter ∅ 1.5
Pin size 0.8*1.0


Name
Document
Download
Name
Document
Download
Multi-digit picture
2-24
