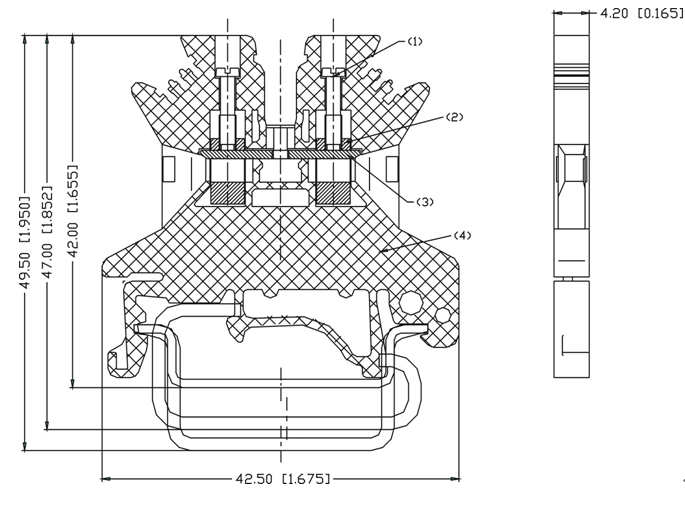

Thickness : 4.20 mm Width : 42.50 mm
Height (JNS35/7.5, JNS35/15, JNS32) : 42mm / 49.50mm / 47mm
| Rigid Conducto(mm2) | 0.14-0.75 |
| Flexible Conductor(mm2) | 0.14-0.75 |
| AWG | 14-30 |
| Rated Voltage (V) | 600 |
| Rated Current (A) | 20 |
| Rated Connectiong Capacity(mm2) | 1.5 |
| Rated Surge Voltage | 6 |
| Contamination Class | 3 |
| Overvoltage Category | Ⅲ |
| Material Grop | Ⅰ |
| Rigid Conducto(mm2) | 0.14-1.5 |
| Flexible Conductor(mm2) | 0.14-1.5 |
| AWG | 16-26 |
| Rated Voltage (V) | 800 |
| Rated Current (A) | 32 |
| Insulation Material | PA |
| Inflammability Class | UL94,V-0 |
| Stripping Length mm | 7 |
| Screw M | 2 |
| Torque N.m | 0.22-0.25 |
| Packing Quantity PCS | 40 |
| End Cover | A044-9 |
| Fixed Bridge | - |
| Insertion Bridge | - |
| Switch bar for 2 TB | - |
| Separating Disk | - |
| Partition Plate | - |
| Test Socket | - |
| Marker Strip | - |
| Marker Carriers | RBJ1 |
| Rail Stator | GD001 |
| Rail Stator | A047-9 |
| Rail Stator | A049-9 |
| MountingRail | JNS35/7.5 |
| MountingRail | JNS35/15 |
| MountingRail | JNS32 |
