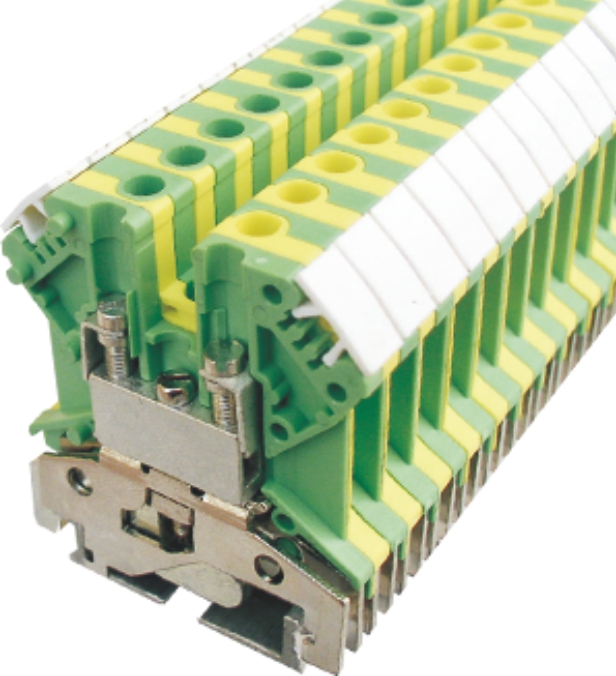

RTB404-10
//5.20mm

Thickness : 5.20 mm     Width : 42.50 mm

Width : (JNS35/7.5, JNS35/15, JNS32) : 47.00mm / 54.50mm / 52.00mm

Poles
1P
Technical data
Authentication
Business data
Download
Attachments

UL Technical Data

Rigid Conducto(mm2) 0.2-1.5
Flexible Conductor(mm2) 0.2-15
AWG 12-28
Rated Voltage (V) -
Rated Current (A) -
Rated Connectiong Capacity(mm2) 4
Rated Surge Voltage 8
Contamination Class 3
Overvoltage Category
Material Grop

IEC Technical Data

Rigid Conducto(mm2) 0.2-4
Flexible Conductor(mm2) 0.2-2.5
AWG 12-24
Rated Voltage (V) -
Rated Current (A) -

Material

Insulation Material PA
Inflammability Class UL94,V-0

Other Data

Stripping Length  mm 8
Screw M 3
Torque N.m 0.6-0.8
Packing Quantity  PCS 60

Accessories:Fit Ground TB

End Cover -
Fixed Bridge -
Insertion Bridge -
Switch bar for 2  TB -
Separating Disk -
Partition Plate -
Test Socket -
Marker Strip A078-10-5
Marker Carriers RBJ1
Rail Stator GD001
Rail Stator A047-9
Rail Stator A049-9
MountingRail JNS35/7.5
MountingRail JNS35/15
MountingRail JNS32
