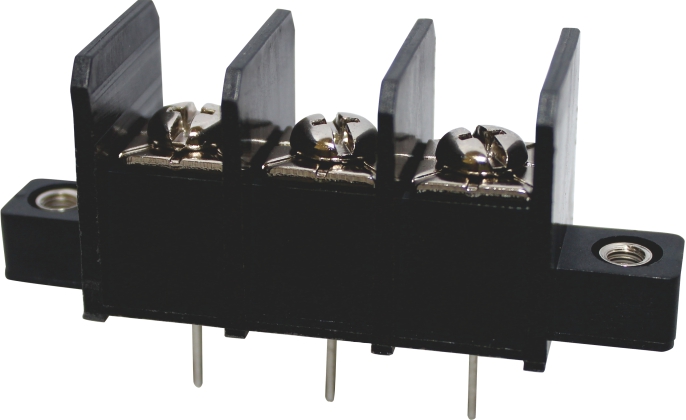

BTB656-01
600V/30A/14.27mm

Rated voltage:600 V      Rated vurrent:30 A

Wire Range :10-16 AWG

Pitch:14.27 mm



Poles
2-8
Technical data
Authentication
Business data
Download
Attachments

UL Technical Data

Rated Voltage (V) 600
Overvoltage Category B
Rated Current(A) 30
Wire Range (AWG) 10-16

IEC Technical Data

Material Grop
Overvoltage Category (Ⅲ/3)(KV)
Overvoltage Category(Ⅲ/3)(KV)
Overvoltage Category(Ⅱ/2)(KV)
Contamination Class 3
Contamination Class 2
Contamination Class 2
Rated Voltage (V) 320
Rated Voltage (V) 320
Rated Voltage (V) 630
Rated Surge Voltage (KV) 6
Rated Surge Voltage (KV) 6
Rated Surge Voltage (KV) 6
Rated Connectiong Capacity (mm2) 4
Rated Current(A) 30

Material

Insulation Material PBT
Inflammability Class UL94,V-0

Other Data

Stripping Length (mm) 9
Screw (M) 4
Torque  (lbf.in) 13
Hole Diameter ∅ 2
Pin size 0.8*1.6
