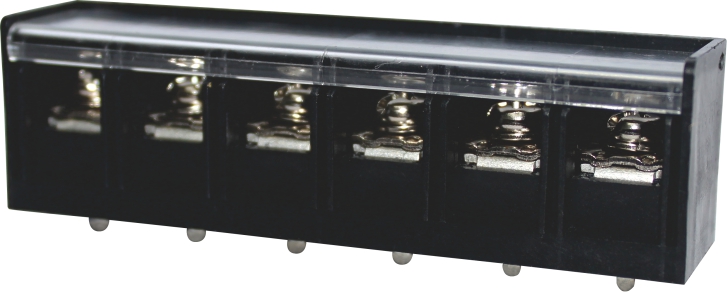

BTB750-04
600V/40A/13mm

Rated voltage:600 V      Rated vurrent:40 A

Wire Range :10-18 AWG

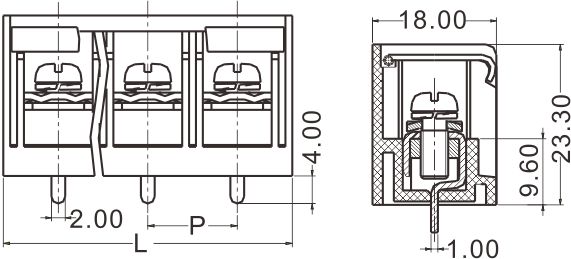

Pitch:13.00 mm






Poles
2-14
Technical data
Authentication
Business data
Download
Attachments

UL Technical Data

Rated Voltage (V) 600
Overvoltage Category B
Rated Current(A) 40
Wire Range (AWG) 10-18

IEC Technical Data

Material Grop
Overvoltage Category (Ⅲ/3)(KV)
Overvoltage Category(Ⅲ/3)(KV)
Overvoltage Category(Ⅱ/2)(KV)
Contamination Class 3
Contamination Class 2
Contamination Class 2
Rated Voltage (V) 1000
Rated Voltage (V) 1000
Rated Voltage (V) 1000
Rated Surge Voltage (KV) 6
Rated Surge Voltage (KV) 6
Rated Surge Voltage (KV) 6
Rated Connectiong Capacity (mm2) 6
Rated Current(A) 40

Material

Insulation Material PBT
Inflammability Class UL94,V-0

Other Data

Stripping Length (mm) 9
Screw (M) 4
Torque  (lbf.in) 16
Hole Diameter ∅ 2.5
Pin size 1.0*2.0
