Rated voltage：300 V Rated vurrent：10 A
Wire Range ：12-22 AWG

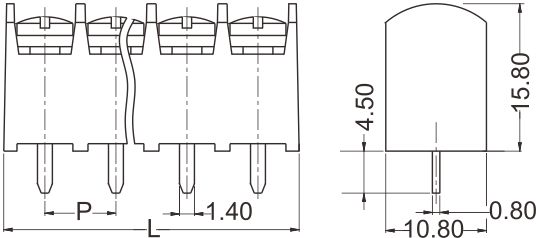

Pitch：7.62 mm
| Rated Voltage (V) | 300 |
| Overvoltage Category | B |
| Rated Current(A) | 10 |
| Wire Range (AWG) | 2-20 |
| Material Grop | Ⅰ |
| Overvoltage Category (Ⅲ/3)(KV) | Ⅲ |
| Overvoltage Category(Ⅲ/3)(KV) | Ⅲ |
| Overvoltage Category(Ⅱ/2)(KV) | Ⅱ |
| Contamination Class | 3 |
| Contamination Class | 2 |
| Contamination Class | 2 |
| Rated Voltage (V) | 160 |
| Rated Voltage (V) | 160 |
| Rated Voltage (V) | 320 |
| Rated Surge Voltage （KV） | 4 |
| Rated Surge Voltage （KV） | 4 |
| Rated Surge Voltage （KV） | 4 |
| Rated Connectiong Capacity (mm2) | 2.5 |
| Rated Current(A) | 15 |
| Insulation Material | PA |
| Inflammability Class | UL94,V-0 |
| Stripping Length (mm) | 7 |
| Screw (M) | 3 |
| Torque (lbf.in) | 4.5 |
| Hole Diameter ∅ | 1.9 |
| Pin size | 0.8*1.4 |
