Rated Voltage：600 V Rated Current：75 A
Wire Range：6-22 AWG

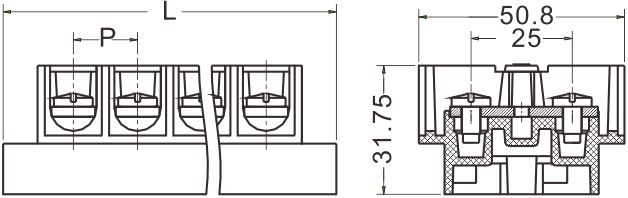

Pitch：15.88 mm
| Rated Voltage (V) | 600 |
| Overvoltage Category | B |
| Rated Current(A) | 75 |
| Wire Range (AWG) | 6-22 |
| Material Grop | Ⅰ |
| Overvoltage Category (Ⅲ/3)(KV) | Ⅲ |
| Overvoltage Category(Ⅲ/3)(KV) | Ⅲ |
| Overvoltage Category(Ⅱ/2)(KV) | Ⅱ |
| Contamination Class | 3 |
| Contamination Class | 2 |
| Contamination Class | 2 |
| Rated Voltage (V) | 800 |
| Rated Voltage (V) | 800 |
| Rated Voltage (V) | 800 |
| Rated Surge Voltage （KV） | 6 |
| Rated Surge Voltage （KV） | 6 |
| Rated Surge Voltage （KV） | 6 |
| Rated Connectiong Capacity (mm2) | 6 |
| Rated Current(A) | 75 |
| Insulation Material | PC |
| Inflammability Class | UL94,V-0 |
| Stripping Length (mm) | 8 |
| Screw (M) | 5 |
| Torque (lbf.in) | 20 |
| Hole Diameter ∅ | |
| Pin size |
