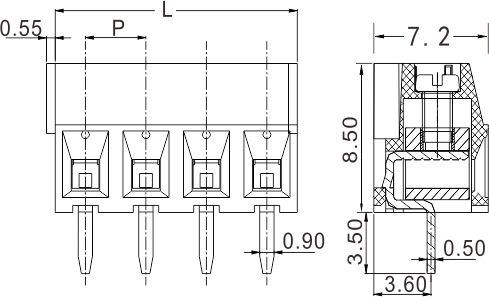

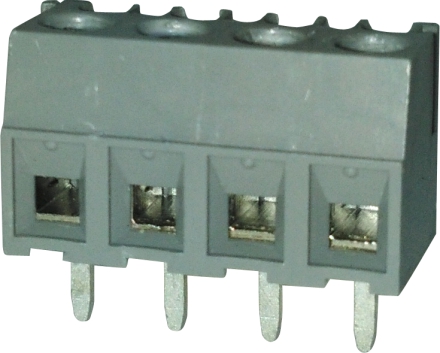

JTB251-04
300V/10A/3.81mm

Rated voltage:300 V      Rated vurrent:10 A

Wire Range :16-30 AWG

Pitch:3.81 mm

Poles
2-16
PDF Download
Technical data
Authentication
Business data
Download
Attachments

UL Technical Data

Rated Voltage (B)(V) 300
Rated Current (B)(A) 10
Rated Voltage (C)(V)
Rated Current (C)(A)
Rated Voltage (D)(V)
Rated Current (D)(A)
Wire Range (AWG) 16-30

IEC Technical Data

Material Grop
Overvoltage Category (Ⅲ/3)(KV)
Overvoltage Category(Ⅲ/3)(KV)
Overvoltage Category(Ⅱ/2)(KV)
Contamination Class 3
Contamination Class 2
Contamination Class 2
Rated Voltage (V) 160
Rated Voltage (V) 160
Rated Voltage (V) 320
Rated Surge Voltage (KV) 2.5
Rated Surge Voltage (KV) 2.5
Rated Surge Voltage (KV) 2.5
Rated Connectiong Capacity(mm2) 1.5
Rated Current (A) 15

Material

Insulation Material PA
Inflammability Class UL94,V-0

Other Data

Stripping Length(mm) 4.80
Screw M 2
Torque ( lbf.in) 2
Hole Diameter (∅) 1.3
Pin size (mm)(∅) 0.9*0.5
