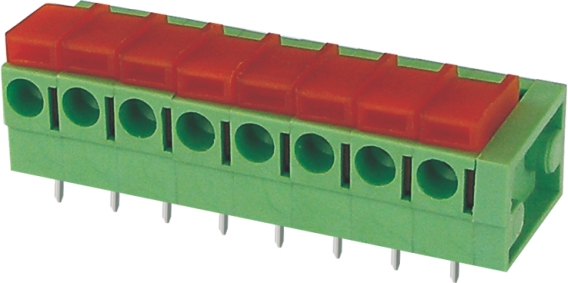

STB851-00
300V/10A/5.00/5.08mm

Rated Voltage:300V      Rated Current:10A

Wire Range :14-22 AWG

Pitch:5.00/5.08 mm


Poles
2-24
Technical data
Authentication
Business data
Download
Attachments

UL Technical Data

Rated Voltage (V) 300
Overvoltage Category B
Rated Current (A) 10
Wire Range (AWG) 14-22

IEC Technical Data

Material Grop
Overvoltage Category (Ⅲ/3)(KV)
Overvoltage Category(Ⅲ/3)(KV)
Overvoltage Category(Ⅱ/2)(KV)
Contamination Class  3
Contamination Class  2
Contamination Class  2
Rated Voltage (V) 160
Rated Voltage (V) 160
Rated Voltage (V) 320
Rated Surge Voltage (KV) 4
Rated Surge Voltage (KV) 4
Rated Surge Voltage (KV) 4
Rated Connectiong Capacity (mm2) 1.5
Rated Current (A) 10

Material

Insulation Material  PA
Inflammability Class UL94,V-0

Other Data

Stripping Length (mm) 10
Hole Diameter   1.3

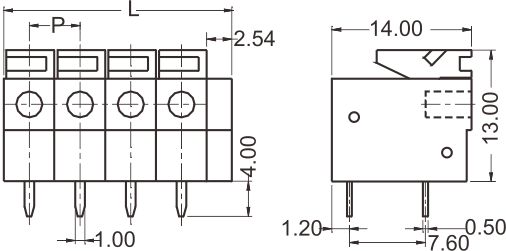

Pin size




Name
Document
Download
Name
Document
Download
Multi-digit picture
2-24
