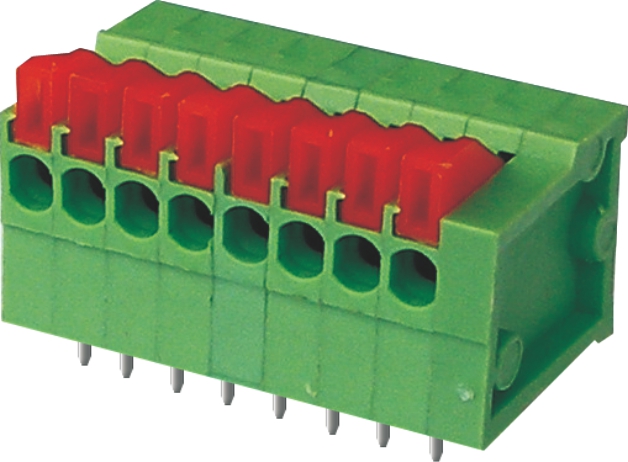

Rated Voltage：150V Rated Current：2A
Wire Range：20-26 AWG

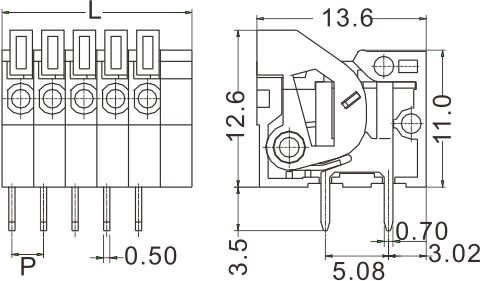

Pitch：2.54 mm
| Rated Voltage (V) | 150 |
| Overvoltage Category | B |
| Rated Current (A) | 2 |
| Wire Range (AWG) | 20-26 |
| Material Grop | Ⅰ |
| Overvoltage Category (Ⅲ/3)(KV) | Ⅲ |
| Overvoltage Category(Ⅲ/3)(KV) | Ⅲ |
| Overvoltage Category(Ⅱ/2)(KV) | Ⅱ |
| Contamination Class | 3 |
| Contamination Class | 2 |
| Contamination Class | 2 |
| Rated Voltage (V) | 160 |
| Rated Voltage (V) | 160 |
| Rated Voltage (V) | 320 |
| Rated Surge Voltage （KV） | 2.5 |
| Rated Surge Voltage （KV） | 2.5 |
| Rated Surge Voltage （KV） | 2.5 |
| Rated Connectiong Capacity (mm2) | 0.5 |
| Rated Current (A) | 2 |
| Insulation Material | PA |
| Inflammability Class | UL94,V-0 |
| Stripping Length (mm) | 11 |
| Hole Diameter ∅ | 1 |
| Pin size | 0.7*0.5 |
