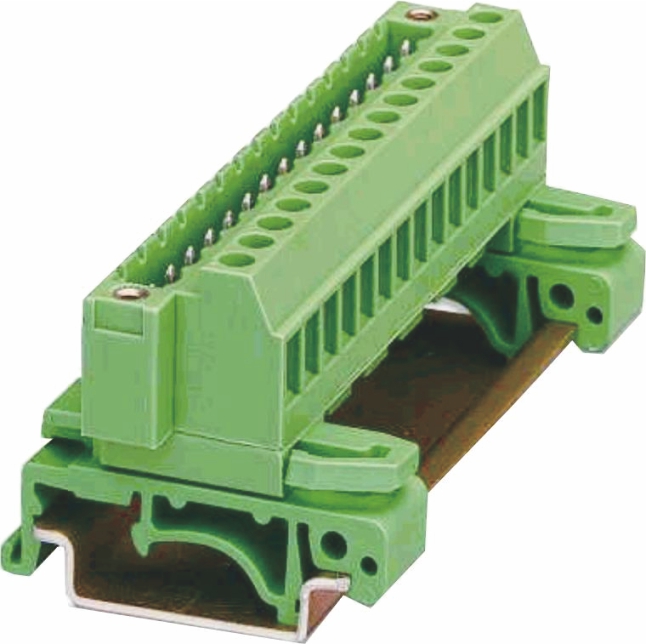

RTB950-01
300V/10A/5.08mm

Rated voltage:300 V      Rated vurrent:10 A

Wire Range :12-24 AWG

Pitch:5.08 mm

Poles
2-24
Technical data
Authentication
Business data
Download
Attachments

UL Technical Data

Rigid Conducto(mm2) 0.2-2.5
Flexible Conductor(mm2) 0.2-2.5
 AWG 12-24
Rated Voltage (V) 300
Rated Current (A) 10
Rated Connectiong Capacity(mm2) 2.5
Rated Surge Voltage
Contamination Class
Overvoltage Category
Material Grop

Material

Insulation Material  PA
Inflammability Class  UL94,V-0

Other Data

Stripping Length  mm 7
Screw M 3
Torque N.m 0.5-0.6
Packing Quantity  PCS 10






Name
Document
Download
Name
Document
Download
Multi-digit picture
2-24
