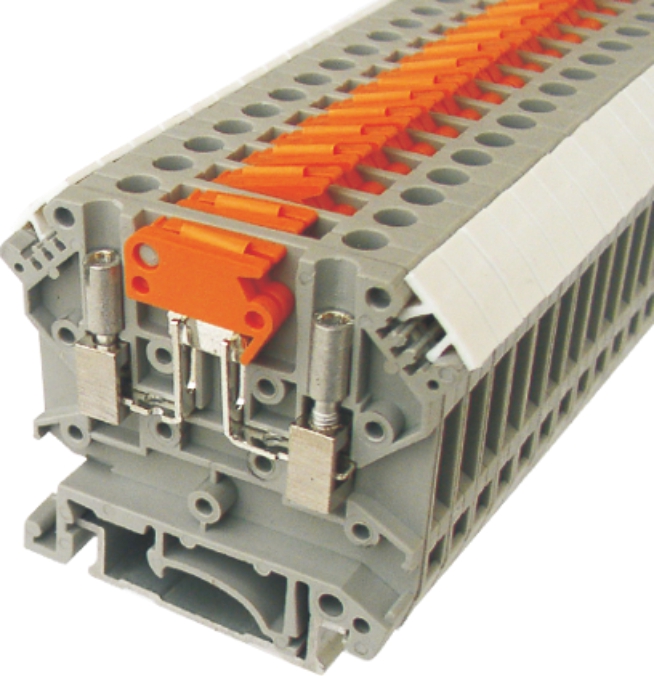

RTB404-16
600V/15A/6.20mm

Thickness : 6.20 mm     Width : 51.00 mm

Height (JNS35/7.5, JNS35/15, JNS32) : 58.50mm / 66mm / 63.50mm

Poles
1P
Technical data
Authentication
Business data
Download
Attachments

UL Technical Data

Rigid Conducto(mm2) 0.2-1.5
Flexible Conductor(mm2) 0.2-1.5
AWG 12-22
Rated Voltage (V) 600
Rated Current (A) 15
Rated Connectiong Capacity(mm2) 4
Rated Surge Voltage 6
Contamination Class 3
Overvoltage Category
Material Grop

IEC Technical Data

Rigid Conducto(mm2) 0.2-4
Flexible Conductor(mm2) 0.2-4
AWG 12.24
Rated Voltage (V) 500
Rated Current (A) 16

Material

Insulation Material PA
Inflammability Class UL94,V-0

Other Data

Stripping Length  mm 8
Screw M 3
Torque N.m 0.5-0.6
Packing Quantity  PCS 40

Accessories:Fit Ground TB

End Cover -
Fixed Bridge -
Insertion Bridge -
Switch bar for 2  TB -
Separating Disk -
Partition Plate -
Test Socket -
Marker Strip A061-10-5
Marker Carriers RBJ1
Rail Stator GD001
Rail Stator A047-9
Rail Stator A049-9
MountingRail JNS35/7.5
MountingRail JNS35/15
MountingRail JNS32
