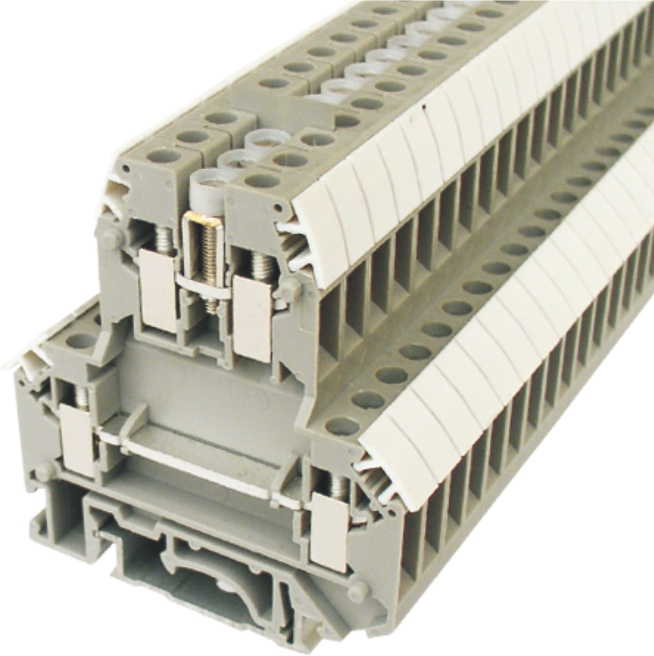

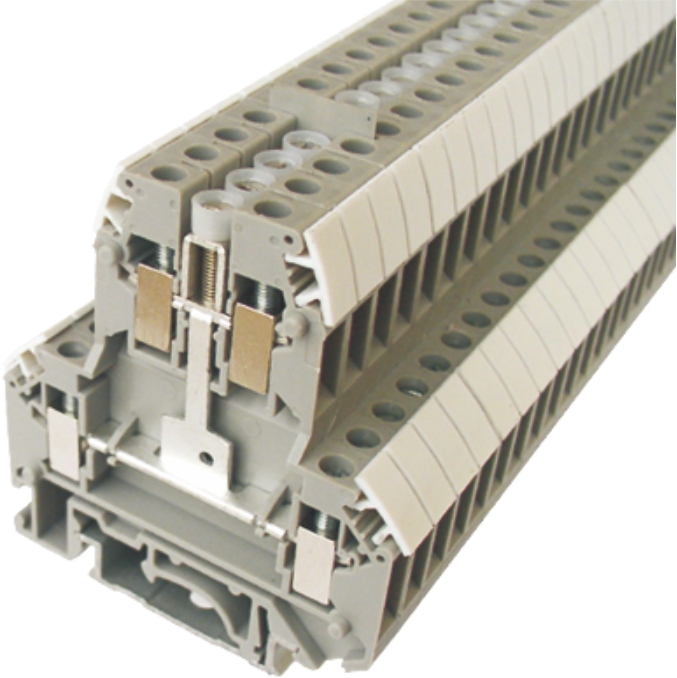

RTB404-01-M1
600V/30A/6.20mm

Thickness : 6.20 mm     Width : 56.00 mm

Height (JNS35/7.5, JNS35/15, JNS32) : 62mm / 69.50mm / 67mm

Poles
1P
Technical data
Authentication
Business data
Download
Attachments

UL Technical Data

Rigid Conducto(mm2) 0.2-1.5
Flexible Conductor(mm2) 0.2-1.5
 AWG 10-26
Rated Voltage (V) 600
Rated Current (A) 30
Rated Connectiong Capacity(mm2) 4
Rated Surge Voltage  6
Contamination Class   3
Overvoltage Category
Material Grop

IEC Technical Data

Rigid Conducto(mm2) 0.2-4
Flexible Conductor(mm2) 0.2-2.5
AWG 12-24
Rated Voltage (V) 500
Rated Current (A) 32

Material

Insulation Material  PA
Inflammability Class  UL94,V-0

Other Data

Stripping Length  mm 8
Screw M 3
Torque N.m 0.6-0.8
Packing Quantity  PCS 30

Accessories:Fit Ground TB  RTB404-12-01

End Cover A059-9
Fixed Bridge  A071-10-22
Insertion Bridge  -
Switch bar for 2  TB -
Separating Disk  A060-9
Partition Plate  -
Test Socket   -
Marker Strip  A061-10-5
Marker Carriers  RBJ1
Rail Stator   GD001
Rail Stator   A047-9
Rail Stator   A049-9
MountingRail   JNS35/7.5
MountingRail   JNS35/15
MountingRail   JNS32
