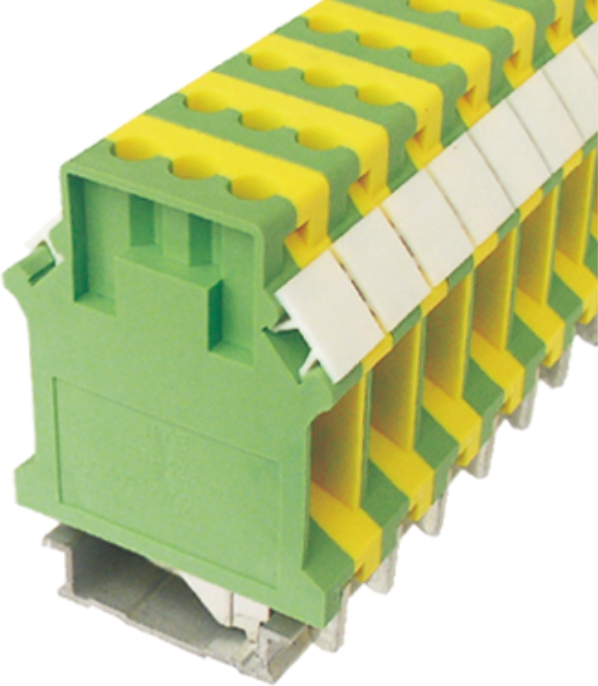

RTB425-02
//12.20mm

Thickness : 12.20 mm     Width : 42.50 mm

Height (JNS35/7.5, JNS35/15, JNS32) : 54mm / 61.50mm / 59mm

Poles
1P
Technical data
Authentication
Business data
Download
Attachments

UL Technical Data

Rigid Conducto(mm2) 1.5-6
Flexible Conductor(mm2) 1.5-4
 AWG 4-12
Rated Voltage (V) -
Rated Current (A) -
Rated Connectiong Capacity(mm2) 25
Rated Surge Voltage  8
Contamination Class   3
Overvoltage Category
Material Grop

IEC Technical Data

Rigid Conducto(mm2) 2.5-25
Flexible Conductor(mm2) 4-16
AWG 4-12
Rated Voltage (V) -
Rated Current (A) -

Material


Insulation Material  PA
Inflammability Class  UL94,V-0

Other Data

Stripping Length  mm 11
Screw M 4
Torque N.m 1.5-1.8
Packing Quantity  PCS 15

Accessories:Fit Ground TB

End Cover -
Fixed Bridge  -
Insertion Bridge  -
Switch bar for 2  TB -
Separating Disk  -
Partition Plate  -
Test Socket   -
Marker Strip  A055-10-5
Marker Carriers  RBJ1
Rail Stator   GD001
Rail Stator   A047-9
Rail Stator   A049-9
MountingRail   JNS35/7.5
MountingRail   JNS35/15
MountingRail   JNS32
