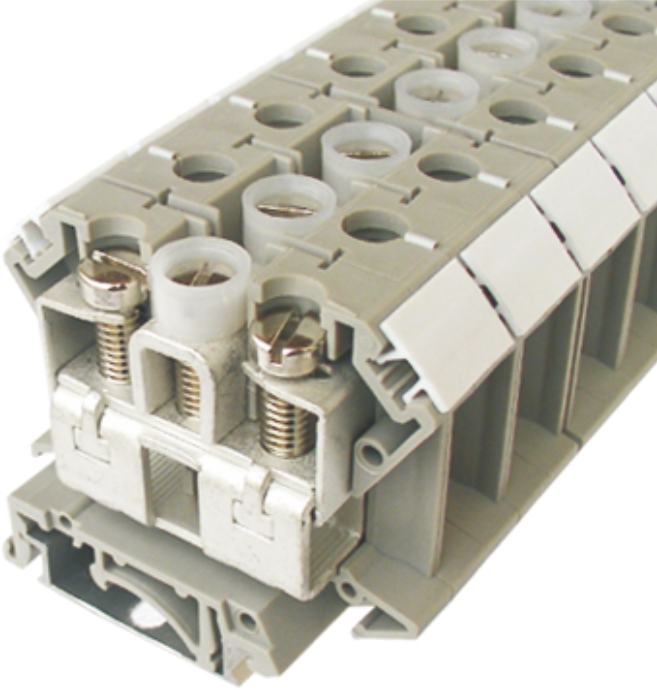

RTB435-00
600V/115A/15.20mm

Thickness : 15.20 mm     Width : 55.00 mm

Height : (JNS35/7.5, JNS35/15, JNS32) : 51.00mm / 58.50mm / 59.00mm

Poles
1P
Technical data
Authentication
Business data
Download
Attachments

UL Technical Data

Rigid Conducto(mm2) 0.75-35
Flexible Conductor(mm2) 0.75-35
AWG 2-18
Rated Voltage (V) 600
Rated Current (A) 115
Rated Connectiong Capacity(mm2) 35
Rated Surge Voltage 8
Contamination Class 3
Overvoltage Category
Material Grop

IEC Technical Data

Rigid Conducto(mm2) 0.75-35
Flexible Conductor(mm2) 0.75-35
AWG 2-18
Rated Voltage (V) 800
Rated Current (A) 125

Material

Insulation Material PA
Inflammability Class UL94,V-0

Other Data

Stripping Length  mm 16
Screw M 6
Torque N.m 3.2-3.7
Packing Quantity  PCS 25

Accessories:Fit Ground TB  RTB435-02-01

End Cover -
Fixed Bridge  A103-10-22
Insertion Bridge  -
Switch bar for 2  TB -
Separating Disk  A048-9
Partition Plate  -
Test Socket   -
Marker Strip  A050-10-5
Marker Carriers  RBJ1
Rail Stator   GD001
Rail Stator   A047-9
Rail Stator   A049-9
MountingRail   JNS35/7.5
MountingRail   JNS35/15
MountingRail   JNS32
