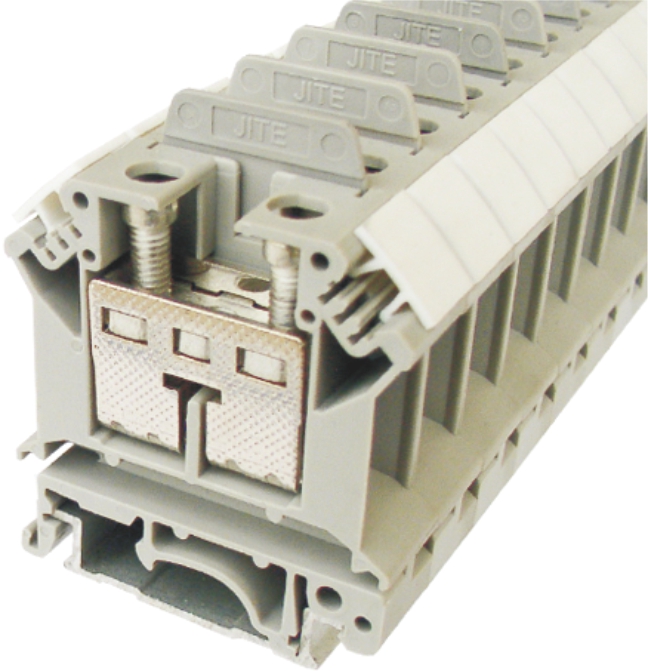

Thickness : 12.20 mm Width : 42.50 mm
Height : (JNS35/7.5, JNS35/15, JNS32) : 47.00mm / 54.50mm / 52.00mm
| Rigid Conducto(mm2) | 1.5-6 |
| Flexible Conductor(mm2) | 1.5-4 |
| AWG | 4-22 |
| Rated Voltage (V) | 600 |
| Rated Current (A) | 85 |
| Rated Connectiong Capacity(mm2) | 25 |
| Rated Surge Voltage | 8 |
| Contamination Class | 3 |
| Overvoltage Category | Ⅲ |
| Material Grop | Ⅰ |
| Rigid Conducto(mm2) | 2.5-25 |
| Flexible Conductor(mm2) | 4-16 |
| AWG | 4-12 |
| Rated Voltage (V) | 400 |
| Rated Current (A) | 101 |
| Insulation Material | PA |
| Inflammability Class | UL94,V-0 |
| Stripping Length mm | 11 |
| Screw M | 4 |
| Torque N.m | 1.5-1.8 |
| Packing Quantity PCS | 15 |
| End Cover | A044-9 |
| Fixed Bridge | A133-10-22 |
| Insertion Bridge | - |
| Switch bar for 2 TB | - |
| Separating Disk | A048-9 |
| Partition Plate | - |
| Test Socket | - |
| Marker Strip | A055-10-5 |
| Marker Carriers | RBJ1 |
| Rail Stator | GD001 |
| Rail Stator | A047-9 |
| Rail Stator | A049-9 |
| MountingRail | JNS35/7.5 |
| MountingRail | JNS35/15 |
| MountingRail | JNS32 |
