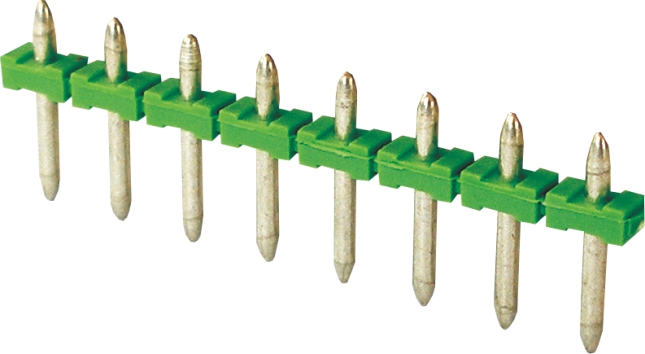

PTB450P-02
300V/10A/5.00mm

Rated voltage:300 V      Rated vurrent:10 A

Pitch:5.00  mm

Poles
2-30
Technical data
Authentication
Business data
Download
Attachments

UL Technical Data

Rated Voltage (B)(V) 300
Rated Current  (B)(A) 10
Rated Voltage (C)(V)
Rated Current  (C)(A)
Rated Voltage (D)(V)
Rated Current  (D)(A)

IEC Technical Data

Material Grop
Overvoltage Category (Ⅲ/3)(KV)
Overvoltage Category(Ⅲ/3)(KV)
Overvoltage Category(Ⅱ/2)(KV)
Contamination Class  3
Contamination Class  2
Contamination Class  2
Rated Voltage (V) 250
Rated Voltage (V) 320
Rated Voltage (V) 320
Rated Surge Voltage   (KV) 4
Rated Surge Voltage   (KV) 4
Rated Surge Voltage   (KV) 4
Rated Current  (A) 10

Material

Insulation Material     PA
Inflammability Class  UL94,V-0

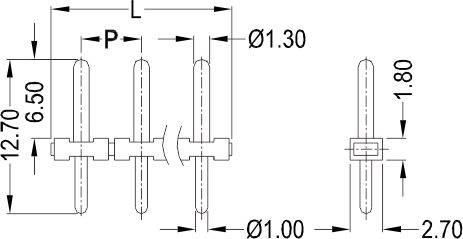

Other Data

Hole Diameter   ∅ 1.5
Pin size ∅ 1.3
