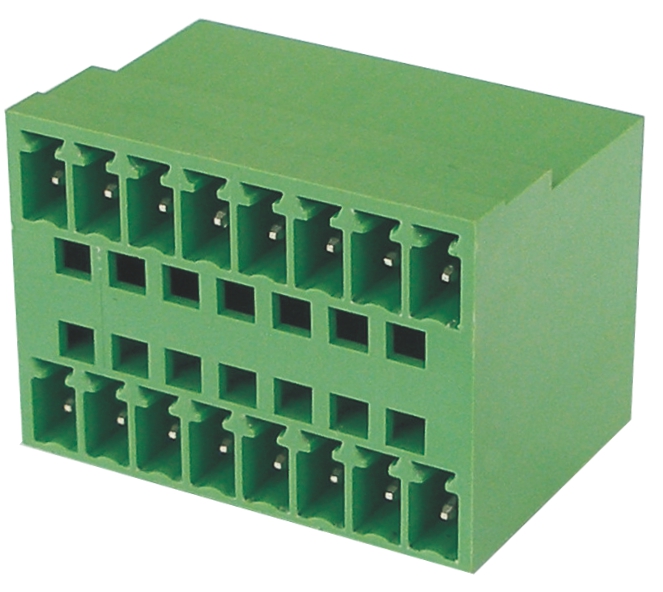

PTB350S-10
300V/8A/3.81mm

Rated voltage:300 V      Rated vurrent:8 A

Pitch:3.81  mm

Poles
2-24
Technical data
Authentication
Business data
Download
Attachments

UL Technical Data

Rated Voltage (B)(V) 300
Rated Current  (B)(A) 8
Rated Voltage (C)(V)
Rated Current  (C)(A)
Rated Voltage (D)(V)
Rated Current  (D)(A)

IEC Technical Data

Material Grop
Overvoltage Category (Ⅲ/3)(KV)
Overvoltage Category(Ⅲ/3)(KV)
Overvoltage Category(Ⅱ/2)(KV)
Contamination Class  3
Contamination Class  2
Contamination Class  2
Rated Voltage (V) 160
Rated Voltage (V) 160
Rated Voltage (V) 320
Rated Surge Voltage   (KV) 2.5
Rated Surge Voltage   (KV) 2.5
Rated Surge Voltage   (KV) 2.5
Rated Current  (A) 8

Material

Insulation Material     PA
Inflammability Class  UL94,V-0

Other Data

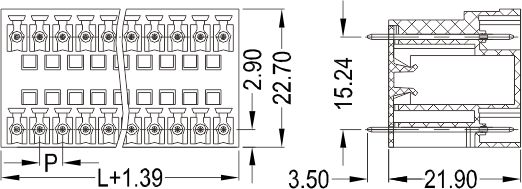

Hole Diameter   ∅ 1.3
Pin size ∅ 0.8*0.8
