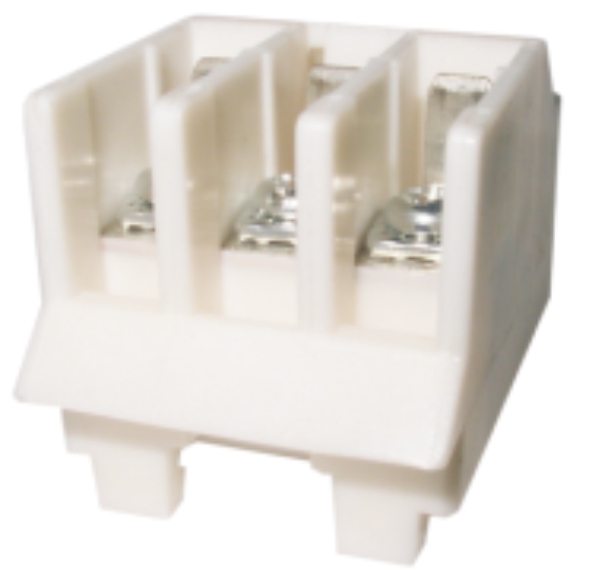

PTB672S-00
600V/30A/9.525mm

Rated voltage:600 V      Rated vurrent:30 A

Pitch:9.525 mm



Poles
3,4
Technical data
Authentication
Business data
Download
Attachments

UL Technical Data

Rated Voltage  (B)(V) 600
Rated Current   (B)(A) 30
Rated Voltage  (C)(V)
Rated Current   (C)(A)
Rated Voltage  (D)(V)
Rated Current   (D)(A)
Wire Range  (AWG) 12-16

IEC Technical Data

Material Grop
Overvoltage Category (Ⅲ/3)(KV)
Overvoltage Category(Ⅲ/3)(KV)
Overvoltage Category(Ⅱ/2)(KV)
Contamination Class 3
Contamination Class 2
Contamination Class 2
Rated Voltage  (V) 400
Rated Voltage  (V) 630
Rated Voltage  (V) 1000
Rated Surge Voltage (KV) 6
Rated Surge Voltage (KV) 6
Rated Surge Voltage (KV) 6
Rated Connectiong Capacity (mm2) 2.5
Rated Current   (A) 30

Material

Insulation Materia PA
Inflammability Class UL94,V-0

Other Data

Stripping Length (mm) /
Screw (M) 3.5
Torque   (lbf.in) 12

Name
Document
Download
Name
Document
Download

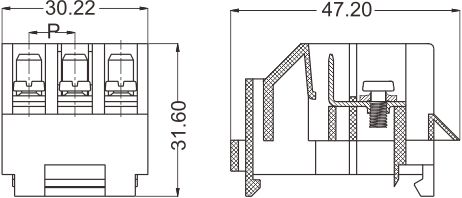

Multi-digit picture
3,4
