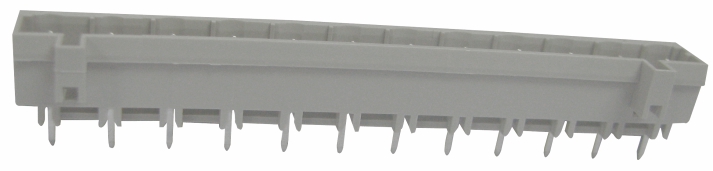

PTB760S-40-M1

300V/15A/7.50mm

Rated voltage：300 V Rated vurrent：15 A

Pitch：7.50 mm

Poles

2-12

Technical data

Authentication

Business data

Download

Attachments

Related products

Rated voltage：300 V Rated vurrent：15 A

Pitch：7.50 mm

PTB820B-01-M*-S*

Rated voltage：300 V Rated vurrent：11 A

Wire Range ：12-28 AWG

Pitch：7.50 mm

PTB820B-03-M*-S*

Rated voltage：300 V Rated vurrent：11 A

Wire Range ：12-28 AWG

Pitch：7.50 mm

PTB820B-04-M*-S*

Rated voltage：300 V Rated vurrent：11 A

Wire Range ：12-28 AWG

Pitch：7.50 mm

PTB820B-05-M*-S*

Rated voltage：300 V Rated vurrent：11 A

Wire Range ：12-28 AWG

Pitch：7.50 mm

Rated voltage：300 V Rated vurrent：15 A

Pitch：7.50 mm

UL Technical Data

Rated Voltage (V)	300
Rated Current (A)	15
Wire Range (AWG)	-
Rated Surge Voltage （KV）	-
Insulation Material	PA
Inflammability Class	UL94,V-0
Terminal Material	Brass
Terminal Plating	Tin Plated
Operating	-40℃ - +105℃
